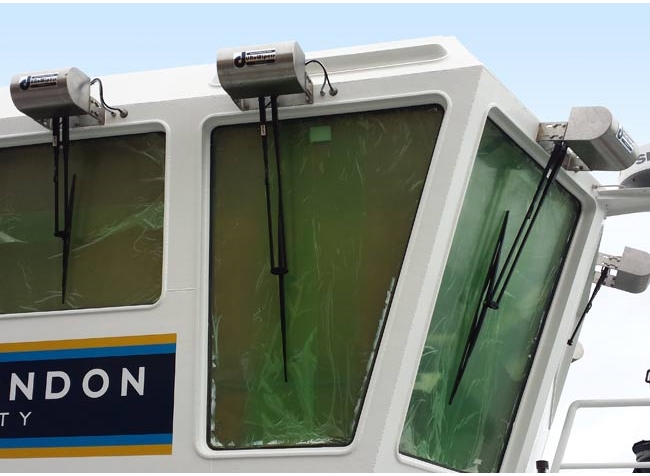

Where internal space is an issue, this is an ideal solution in Pantograph or Pendulum form. The DuroWiper is sealed inside a heavy duty waterproof Pod manufactured from 3mm & 5mm AISI 316 Stainless Steel or Aluminium and powder coated to BES 005 Section 22 in most colours.
The Wiper Pod can be mounted above or below the window, the Pod bracket is attached to the bulkhead either (bolted or welded). The Pod is then bolted to the bracket with M10 A480 stainless steel fasteners. The armoured electrical cable from the pod is connected to an externally mounted junction box on the bulkhead. This system is particularly favoured for retro fitting to military vessels as there is minimal disturbance to the internal bulkhead.
All our DuroWiper systems have our unique Patented Twin Drive Shafts and Rotary mechanism giving a smooth and powerful stroke.
To assist designers and ease installation problems our Transfer box can be assembled with the motor attached at any angle at no extra cost.
The unique stroke motion ensures a quiet and smooth blade action. Each stroke accelerates and decelerates giving blades and arms a longer life.
