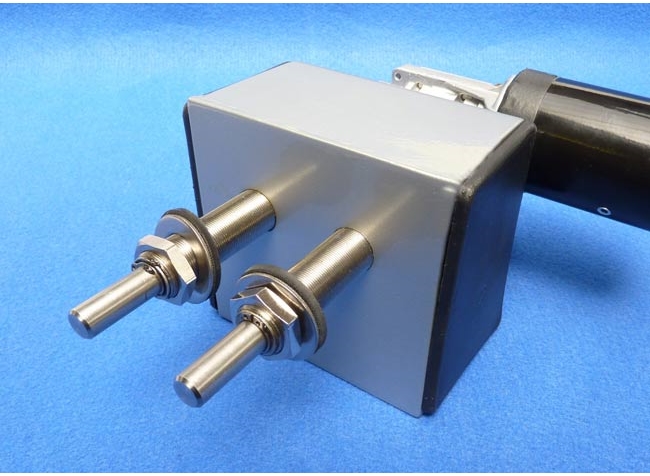

Designed for the high speed vessels where space and weight is limited but high performance is required. The Class 60 uses a 5mm frame with two main drive bearings similar to the Class 80. This gives added strength for vessels combating heavy water.
Driven by a 24 Volt 50Nm Motor.
Class 60 Cover available as optional extra in standard or RFI (Radio Frequency Interference) Screen.
For engineering drawings of the Class 60 Click Here
DuroWiper Pantographs and Pendulums have a Patented twin drive rotary mechanism. This converts the rotary motion of the motor, to a reciprocating motion via transfer box to the wiper arm. It gives a maintenance free, smooth, powerful and reliable performance. This allows our warranties of 3 years for commercial users; ten years as well as Lifetime (25 years) specifically for the RNLI and our Royal Navy.
(Excluding blades as they are considered consumable items).
All our DuroWiper systems have our unique Patented Twin Drive Shafts and Rotary mechanism giving a smooth and powerful stroke.
To assist designers and ease installation problems our Transfer box can be assembled with the motor attached at any angle at no extra cost.
The unique stroke motion ensures a quiet and smooth blade action. Each stroke accelerates and decelerates giving blades and arms a longer life.
